Product Details
Place of Origin: jiangsu, China
Brand Name: ZETOP MEDICAL
Certification: CE
Model Number: ZT-FPD-02
Payment & Shipping Terms
Minimum Order Quantity: 1 pieces
Price: $5,800.00 - $8,000.00/units
Packaging Details: Every unit is individually packed in standard export box and surrounded by protective foam.
Delivery Time: 3-15 work days
Payment Terms: L/C, T/T
Supply Ability: 1000 Unit/Units per Month
Power Source: |
Electric |
Warranty: |
1 Year, 12 Months |
After-sale Service: |
Free Spare Parts |
Material: |
Metal, Plastic |
Shelf Life: |
3 Years |
Quality Certification: |
Ce |
Instrument Classification: |
Class II |
Safety Standard: |
None |
Properties: |
Medical X-ray Equipments & Accessories |
Name: |
Radiologie Digital X Ray Flat Panel Detector |
Language: |
English |
Certificate: |
CE ISO |
Power: |
220V 50HZ/ 110V 60HZ |
Port: |
Shanghai/ Guangzhou/ Shenzhen Etc Seaports In China |
Power Source: |
Electric |
Warranty: |
1 Year, 12 Months |
After-sale Service: |
Free Spare Parts |
Material: |
Metal, Plastic |
Shelf Life: |
3 Years |
Quality Certification: |
Ce |
Instrument Classification: |
Class II |
Safety Standard: |
None |
Properties: |
Medical X-ray Equipments & Accessories |
Name: |
Radiologie Digital X Ray Flat Panel Detector |
Language: |
English |
Certificate: |
CE ISO |
Power: |
220V 50HZ/ 110V 60HZ |
Port: |
Shanghai/ Guangzhou/ Shenzhen Etc Seaports In China |

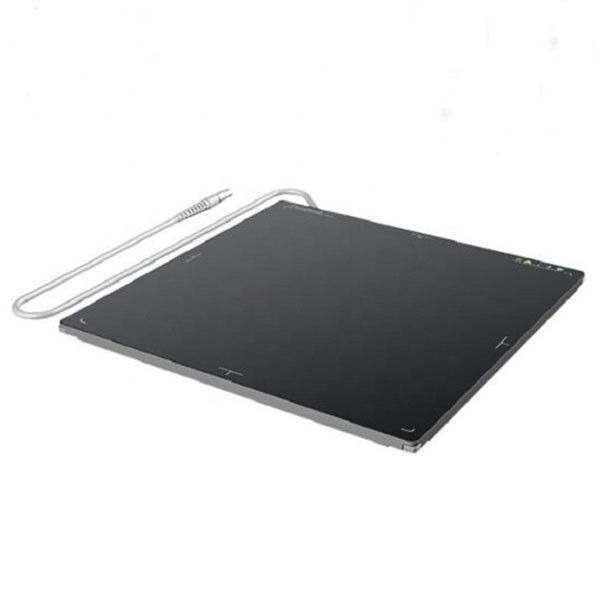

Specifications for ZT-FPD-02 Hot Selling Radiologie Digital X Ray Flat Panel Detector Medical Device With High Quality
| No. | Main parts | Specifications |
| 1 | Mobile Flat Panel Detector | 1.1 Scintillator: CsI or GdOS; |
| 1.2 Image size:17×17 inch; | ||
| 1.3 Pixels:3072(H)*3072(V); | ||
| 1.4 Dimensions:460*460*16mm | ||
| 1.5 Pixel Pitch:140µm; | ||
| 1.6 Spatial Resolution:3.7Lp/mm; | ||
| 2 | DICOM DR workstaton | Software: Staray 4.4.0 |
|
Patient Management: Worklist Query Add and Edit Patient in the local Urgent Patient A variety of conditions integrated query Quick query of patient information Burn dicom image disc, attach image viewer |
||
|
Image Reception Select bodypart in text or graphics mode Set exposure conditions of generator Can select different body size AEC Control Focus Control Generator state display Support a variety of synchronous methods of generator and detector |
||
|
Image Processing Image preprocessing Image postprocessing Add text annotation Image rotation and flipping Manual or automatic image cropping Image contrast and brightness adjustment Image dicom archive |
||
|
Image Display W/L adjustment Image Zoom in/out Image Pan Image rotation and flipping Image invert display Arrow markup Line distance measurement Angle Measurement Rectangle, ellipse, polygon Measurement Magnifier tool Multi-Window Display Settings |
||
|
Film processing Film layout set Film orientation set Film polarity set Film style set Film size set W/L adjustment Image Zoom in/out Image Pan Image rotation and flipping Image invert display Multiple Film Production Management |
ZT-FPD-02 Hot Selling Radiologie Digital X Ray Flat Panel Detector Medical Device With High Quality
