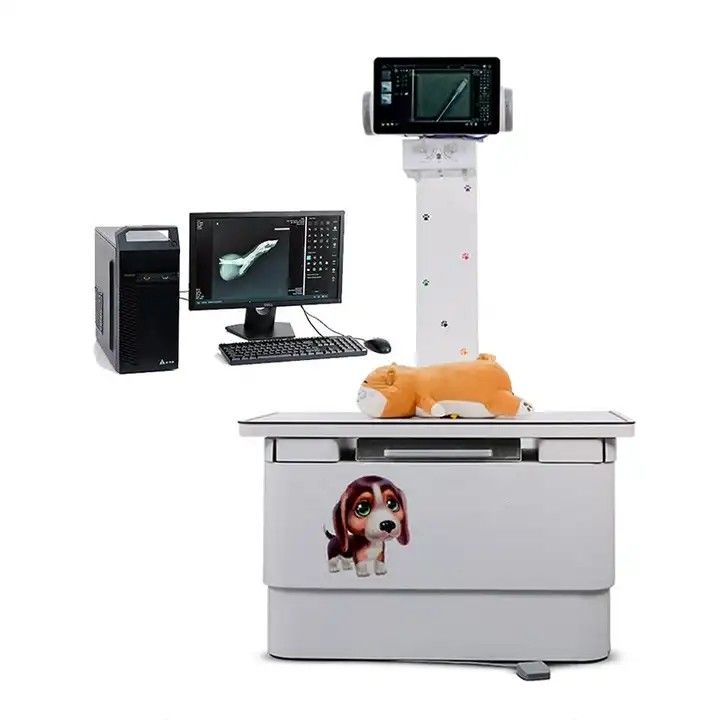

Veterinary 4KW Xray Machine High Frequency 5kw Vet 70mA

Product Details

Place of Origin: jiangsu, China

Brand Name: guanxiong

Certification: CE

Model Number: XY-X050B

Payment & Shipping Terms

Minimum Order Quantity: 1 pieces

Price: $13999/sets 1-99 sets

Delivery Time: 3-15 work days

Payment Terms: L/C, T/T

Supply Ability: 500 Set/Sets per Month

Get Best Price
Highlight:

Veterinary Vet Xray Machine High Frequency

,

4KW Veterinary Xray Machine

,

70mA Veterinary Xray Machine

Power Supply:
AC220V±10%, 50/60Hz±1Hz
Warranty:
1 Year
After-sale Service:
Online Technical Support
Material:
Metal
Shelf Life:
1years
Quality Certification:
CE ISO
Instrument Classification:
Class II
Nominal Output Power:
100kV,40mA,0.1s,5kW
Application:
Veterinary
MA Adjustable Range:
36mA~70mA
Anatomical Program:
24 Memory Choices Available
Exposure Time Adjustable Range:
0.04s~3.2s
X-ray Tube Focus:
0.6/1.2mm
Function:
Medical Diagnosis
Frequency:
≥30kHz
Power Supply:
AC220V±10%, 50/60Hz±1Hz
Warranty:
1 Year
After-sale Service:
Online Technical Support
Material:
Metal
Shelf Life:
1years
Quality Certification:
CE ISO
Instrument Classification:
Class II
Nominal Output Power:
100kV,40mA,0.1s,5kW
Application:
Veterinary
MA Adjustable Range:
36mA~70mA
Anatomical Program:
24 Memory Choices Available
Exposure Time Adjustable Range:
0.04s~3.2s
X-ray Tube Focus:
0.6/1.2mm
Function:
Medical Diagnosis
Frequency:
≥30kHz
Veterinary 4KW Xray Machine High Frequency 5kw Vet 70mA

Medical Xray System Digital Vet X Ray High Frequency Veterinary X-ray Machine with Panels



Power supply
Voltage: AC220V± 10%, 50/60Hz ± 1Hz
Capacity: ≥5kVA, Internal resistance: ≤0.5Ω
Maximum output power
P =110kV×36mA=5kW
Nominal output power
100kV,40mA,0.1s,5kW
Frequency
≥40kHz
kV adjustable range
40kV~110kV, continuous regulation, stepping 1kV
mA adjustable range
36mA~70mA
mAs adjustable range
1mAs-200mAs,continuous regulation
Exposure time adjustable range
0.04s~3.2s
X ray tube
Focus: 0.6/1.5mm,
Thermal Capacity: 76kHU
Anatomical program
24 memory choices available
Accessories
Standard: manual switch,cable
Optional: mobile steel support



Customizable Options
1. The table length can be 1.2 m or 1.4 m
2. The urinary trough of the table is optional according to needs
3. The 4 corners of the table is optional(angle R5-50)
4. The logo of the table can be customized with stainless steel stickers or screen printing;
     the stickers can be beautified and pasted by customers themselves.
5. Movable casters are optional
6. X-ray tube is optional(imported or Chinese brands)
7. Flat panel detector is optional (multi-brands)
