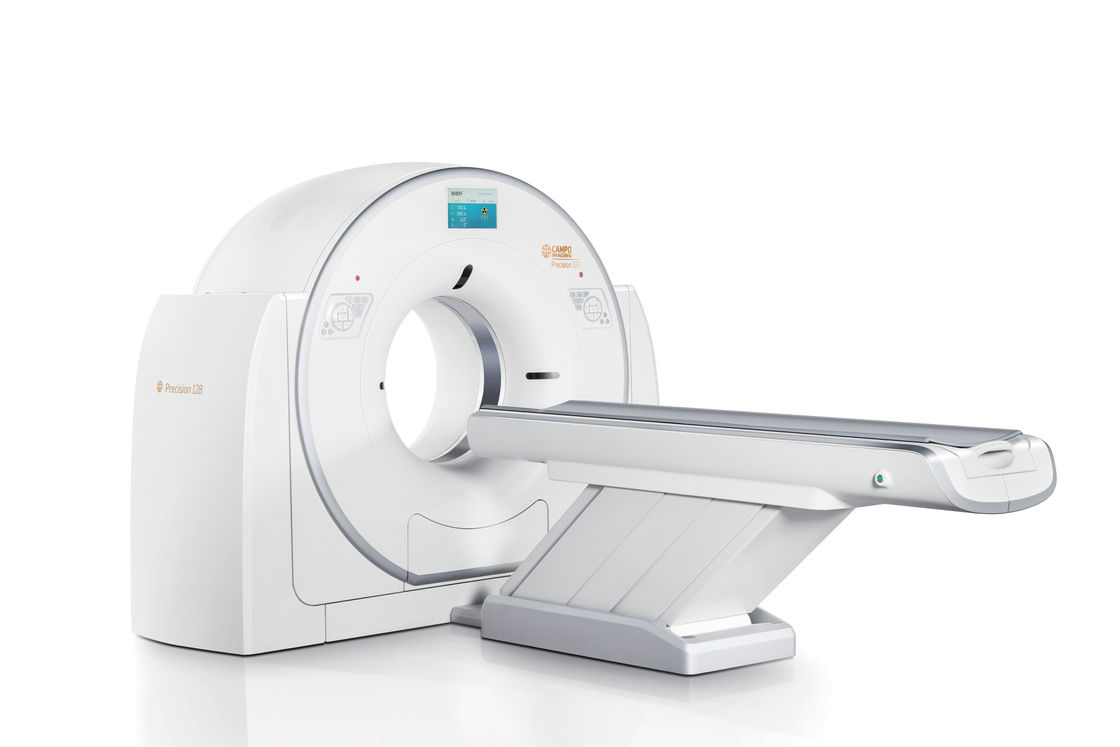

Premium Medical 128 Slice Computed Tomography System Imaging Scanner CT Scan Machine

Product Details

Place of Origin: jiangsu, China

Brand Name: guanxiong

Certification: CE

Model Number: CT-128

Payment & Shipping Terms

Minimum Order Quantity: 1 pieces

Price: $380000/sets 1-99 sets

Delivery Time: 3-15 work days

Payment Terms: L/C, T/T

Supply Ability: 500 Set/Sets per Month

Get Best Price
Highlight:
Application:
X-ray Room .Radiography Department
Warranty:
4 Year
Power Source:
Electric
Product Name:
128 Clice CT Scan Machine
Type:
Ct Scanner
Function:
Medical Diagnosis
Usage:
Medical Radiology Graphics Output
Image Collection:
128 Floors/360°
Shelf Life:
3 Years
After-sale Service:
Online Technical Support
Aperture Of Frame:
71.5cm
Inclination Angle Of Frame:
±30°
Cooling Mode:
Wind Cooling
Application:
X-ray Room .Radiography Department
Warranty:
4 Year
Power Source:
Electric
Product Name:
128 Clice CT Scan Machine
Type:
Ct Scanner
Function:
Medical Diagnosis
Usage:
Medical Radiology Graphics Output
Image Collection:
128 Floors/360°
Shelf Life:
3 Years
After-sale Service:
Online Technical Support
Aperture Of Frame:
71.5cm
Inclination Angle Of Frame:
±30°
Cooling Mode:
Wind Cooling
Premium Medical 128 Slice Computed Tomography System Imaging Scanner CT Scan Machine

Premium Medical 128 Slice Computed Tomography System Imaging Scanner CT Scan Machine

Classification name Precision 128 Precision 128 MAX
Rack system Aperture of frame 71.5cm 72cm
Inclination angle of frame ±30° ±30°
Scanning collimation 4x0.625mm
8x0.625mm
16x0.625mm
32x0.625mm
64x0.625mm
64x0.3125mm
4x0.625mm
8x0.625mm
16x0.625mm
32x0.625mm
64x0.625mm
64x0.3125mm
Sampling rate 5400 view/360° 5400 view/360°
Image collection 128 floors/360° 128 floors/360°
Fastest speed 0.72 sec/lap 0.298 sec/lap
Scanning visual field 500mm 500mm
Data transmission mode digital transmission digital transmission
Cooling mode wind cooling wind cooling
explorer Number of detector rows Row 64 Row 64
Number of detector units per row 880 880
Total number of detector units 56320 56320
Detector width 40mm 40mm
Thinnest physical layer thickness 0.625mm 0.625mm
X- ray system focus Large: 1.2mmx1.4mm
Small: 0.7mmx0.8mm
Large: 1.2mmx1.4mm
Small: 0.7mmx0.8mm
Heat capacity of spherical tube 3.5MHU 7.5MHU
Anode heat dissipation rate 735KHU/min(8750W) 1386KHU/min(16500W)
Minimum output of bulb voltage 60KV 60KV
Bulb tube voltage range 60KV/70KV/80KV/100KV/120KV/140KV 60KV/70KV/80KV/100KV/120KV/140KV
Bulb tube current 10mA-350mA 10mA-800mA
High voltage generator power 42KW 80KW
Maximum continuous exposure time 100seconds 102seconds



Precision 128 Max fully upgraded high performance Tubes



The continuous scanning time of more than 100 seconds ensures the effect of the whole body large-scale vascular imaging.

Real-time monitoring with AI techniques automatically triggers scanning procedure when the contrast agent reaches targeted vessels,which improves the success rate and image quality of cardiovascular imaging.



Premium Medical 128 Slice Computed Tomography System Imaging Scanner CT Scan Machine 0



Intelligent medical imaging workstation



The homemade CIW workstation completely complies with the standard of medical image, and can realize the

functions of obtaining, processing, analyzing, managing, archiving, querying, browsing, printing, standard image

format output, report writing and so on. At the same time, it has many advanced clinical applications.
