Home > products > Defecation Care Robot > Intelligent Defecation Nursing Set Incontinence Robot Bed

Intelligent Defecation Nursing Set Incontinence Robot Bed

Product Details

Place of Origin: Jiangsu, China

Brand Name: OEM

Certification: ISO

Model Number: XY-HLC06

Payment & Shipping Terms

Minimum Order Quantity: 1 pieces

Price: $5800/pieces 1-499 pieces

Packaging Details: Standard export packaging

Delivery Time: 3-15 work days

Payment Terms: L/C, T/T

Supply Ability: 100000 Piece/Pieces per Day

Get Best Price
Highlight:

Intelligent Incontinence Nursing Robot

,

215* 60* 65cm medical Hospital Patient Beds

,

185kg medical Hospital Patient Beds

Material:
Metal
Warranty:
1 Year
Feature:
Back Lifting And Leg Lifting, Functions Can Be Customized
MOQ:
1pcs
Application:
Home,Nursing Centers,hospital
Product Name:
Smart Care Bed
Type:
Hospital Patient Beds,Defecation Care Robot
Color:
White,customized
Main Unit Net Weight:
185 Kg
Keyword:
Adjustable Medical Bed
Main Unit Size:
215* 60* 65cm
Port:
Ningbo
Packing:
1set/carton Box,then Wooden Carton
Certification:
CE And ISO Approved
Bed Frame:
Steel Products
Product Structure:
Multifunctional Electric Bed+mattress+intelliget Nursing Machine For Defecationn
Function:
Intelligent Defecation Nursing, Intelligent Defecation Cleaning
Applicable People:
Long-term Bedridden Disability, Paralysis, Cerebral Palsy, Alzheimer's Disease
Packing Quantity:
Main Engine 1, Bed 1, Headboard 1, Guardrail 1.
OEM/ODM:
Accept
After-sale Service:
Online Technical Support
Material:
Metal
Warranty:
1 Year
Feature:
Back Lifting And Leg Lifting, Functions Can Be Customized
MOQ:
1pcs
Application:
Home,Nursing Centers,hospital
Product Name:
Smart Care Bed
Type:
Hospital Patient Beds,Defecation Care Robot
Color:
White,customized
Main Unit Net Weight:
185 Kg
Keyword:
Adjustable Medical Bed
Main Unit Size:
215* 60* 65cm
Port:
Ningbo
Packing:
1set/carton Box,then Wooden Carton
Certification:
CE And ISO Approved
Bed Frame:
Steel Products
Product Structure:
Multifunctional Electric Bed+mattress+intelliget Nursing Machine For Defecationn
Function:
Intelligent Defecation Nursing, Intelligent Defecation Cleaning
Applicable People:
Long-term Bedridden Disability, Paralysis, Cerebral Palsy, Alzheimer's Disease
Packing Quantity:
Main Engine 1, Bed 1, Headboard 1, Guardrail 1.
OEM/ODM:
Accept
After-sale Service:
Online Technical Support
Intelligent Defecation Nursing Set Incontinence Robot Bed

Intelligent Defecation Nursing Set Incontinence Robot Bed 0

Newly designed exclusive multifunctional intelligent defecation nursing bed (multifunctional nursing bed+defecation cleaning machine), defecation nursing robot, Smart nurse cleaning robot, defecation nursing machine for bedridden disabled elderly and disabled people, stroke, cerebral palsy, Alzheimer's disease and senile dementia.



Main configuration:

Multifunctional electric bed, toilet collection host (toilet bucket, clean water tank, sewage tank. The main machine is installed under the bed), mattress. Remote control, operation panel.

The bed and machine are integrated, and there are no redundant pipes, so the operation is simpler and cleaner.



Intelligent Defecation Nursing Set Incontinence Robot Bed 1

Main components of electric nursing bed
1. Carbon steel bed surface and bedstead (1 set)
2. PE headboard and headboard (2 pieces)
3. Five-gear aluminum alloy guardrail (1 pair)
4. Luxury silent brake wheels (4)
5. High-quality original motor set (1 set)
6. Imported original battery pack (1 set)
7. Mobile dining table (optional) (1 piece)
8. Infusion poles (optional) (1)
Electric bed can be customized.
Electric bed can be customized.Defecation nursing machine, intelligent defecation and urine cleaning machine, newly designed ABS+ steel integrated bed.





Intelligent Defecation Nursing Set Incontinence Robot Bed 2


Specification and dimensions of nursing beds/mattresses/sheets
1. The bed surface specification is 1925mm*830mm.
2. The whole bed size is 2070mm*925mm*530mm.
3. Mattress size is 1925mm*830mm*50mm.
4. Sheet size 2220mm*980mm



Intelligent Defecation Nursing Set Incontinence Robot Bed 3





Host setting parameters:

Urine collection time,

Flushing water pressure,

Please wash the time when you are ready.

Drying time of toilet bucket,

Cleaning water temperature,

Drying temperature.



Intelligent Defecation Nursing Set Incontinence Robot Bed 4





Working mode selection
1. Fully automatic: the whole process is automatic and unmanned.
2. Semi-automatic: automatic after manual start.
3. Full manual operation: the whole process is operated by manual operation.



Features of automatic washing and cleaning function
1. adjustable water temperature: the washing water temperature can be adjusted according to the user's own temperature sense and season.
2. Adjustable water pressure: the flushing water pressure can be adjusted according to the different flushing requirements of the urinal.
3. adjustable time: the flushing time can be adjusted according to the nature of excreta and its own requirements.
4. Water flow cleaning: cleaning excreta by flushing water flow to avoid negative pressure noise interference.



Intelligent Defecation Nursing Set Incontinence Robot Bed 5

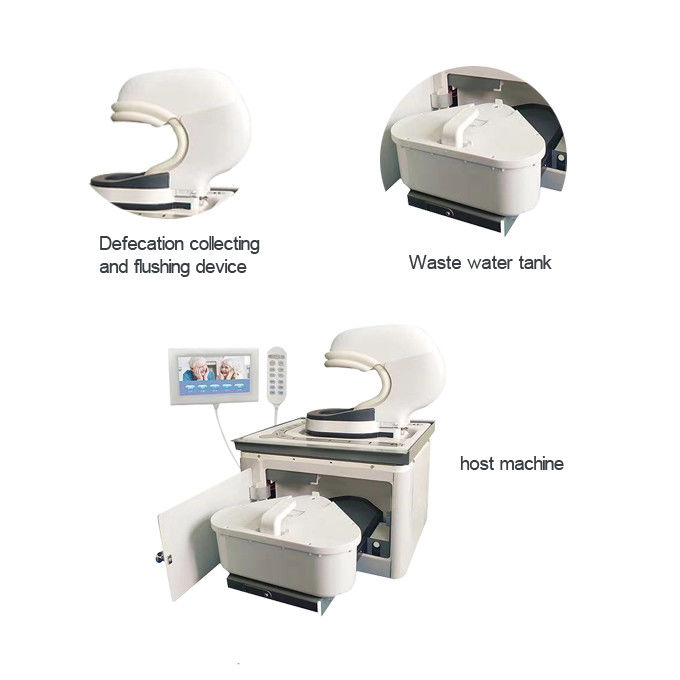

Defecation collection host:

When defecating, when the toilet door senses foreign objects,

The toilet door will automatically open,

And that flush water lubricate the inner wall of the toilet bucket for better collection and cleaning.

Rinse and clean the user, then disinfect with ozone and dry.



Intelligent Defecation Nursing Set Incontinence Robot Bed 6



Products Description

System setting

Defecate time 180-1800s
Defecate flushing&cleaning 4-20s
Defecate dyring 120-300s
Defecate temperature 30-55 ℃
Urinate time 30-180s
Urinate flushing 3-10s
Urinate drying 1-1200s
Urinate temperature 30-43 ℃
Flushing temperature 34-39℃
Urinate negative pressure 3-5grad
Defecate negative pressure 3-5grad
oice volume 1-5grade
Time display on/off





Intelligent Defecation Nursing Set Incontinence Robot Bed 7



Flushing process



Intelligent Defecation Nursing Set Incontinence Robot Bed 8





Take-out mode of waste water tank:

Turn on the switch and pull out the waste water tank.



Intelligent Defecation Nursing Set Incontinence Robot Bed 9



Intelligent Defecation Nursing Set Incontinence Robot Bed 10




Clean the main components of the host system by defecation.
1. System software (1 set)
2. System hardware (1 set)
(1) feces collection device (1 set)
(2) Sewage disposal device (1 set)
(3) flushing device (1 set)
(4) Drying device (1 set)

(5)Alarm prompt device (1 set)
(6) Music playback device (1 set)
Once the water drainage device (1 set) V.2.0)

General parameters:
Fecal collection time (180-1800S)
Urine collection time (30-180S)
Stool flushing time (30-6
parameters:
Fecal collection time (180-1800S)
Urine collection time (0S)
Urine flushing time (10-30S)
Stool drying time (180-900S)
Urine drying time (60-300S)
Water pressure for defecation flushing (1-5)
Urine flushing water pressure (1st-3rd gear)
Flushing water temperature setting (30-45 degrees)
Setting of drying air temperature (30-55 degrees)
