Product Details
Place of Origin: Jiangsu, China
Brand Name: OEM
Certification: ISO
Model Number: XY-HLC06
Payment & Shipping Terms
Minimum Order Quantity: 1 pieces
Price: $5800/pieces 1-499 pieces
Packaging Details: Standard export packaging
Delivery Time: 3-15 work days
Payment Terms: L/C, T/T
Supply Ability: 100000 Piece/Pieces per Day
Product Name: |
Smart Care Bed |
Feature: |
Back Lifting And Leg Lifting, Functions Can Be Customized |
Material: |
Metal |
Application: |
Home，Nursing Centers，hospital |
Warranty: |
1 Year |
Function: |
Intelligent Defecation Nursing, Intelligent Defecation Cleaning |
Product Structure: |
Multifunctional Electric Bed+mattress+intelliget Nursing Machine For Defecationn |
MOQ: |
1pcs |
Type: |
Hospital Patient Beds，Defecation Care Robot |
Applicable People: |
Long-term Bedridden Disability, Paralysis, Cerebral Palsy, Alzheimer's Disease |
Color: |
White，customized |
Main Unit Net Weight: |
185 Kg |
Keyword: |
Adjustable Medical Bed |
Port: |
Ningbo |
Packing: |
1set/carton Box,then Wooden Carton |
Certification: |
CE And ISO Approved |
Bed Frame: |
Steel Products |
Packing Quantity: |
Main Engine 1, Bed 1, Headboard 1, Guardrail 1. |
OEM/ODM: |
Accept |
Main Unit Size: |
215* 60* 65cm |
After-sale Service: |
Online Technical Support |
Product Name: |
Smart Care Bed |
Feature: |
Back Lifting And Leg Lifting, Functions Can Be Customized |
Material: |
Metal |
Application: |
Home，Nursing Centers，hospital |
Warranty: |
1 Year |
Function: |
Intelligent Defecation Nursing, Intelligent Defecation Cleaning |
Product Structure: |
Multifunctional Electric Bed+mattress+intelliget Nursing Machine For Defecationn |
MOQ: |
1pcs |
Type: |
Hospital Patient Beds，Defecation Care Robot |
Applicable People: |
Long-term Bedridden Disability, Paralysis, Cerebral Palsy, Alzheimer's Disease |
Color: |
White，customized |
Main Unit Net Weight: |
185 Kg |
Keyword: |
Adjustable Medical Bed |
Port: |
Ningbo |
Packing: |
1set/carton Box,then Wooden Carton |
Certification: |
CE And ISO Approved |
Bed Frame: |
Steel Products |
Packing Quantity: |
Main Engine 1, Bed 1, Headboard 1, Guardrail 1. |
OEM/ODM: |
Accept |
Main Unit Size: |
215* 60* 65cm |
After-sale Service: |
Online Technical Support |
Newly designed exclusive multifunctional intelligent defecation nursing bed (multifunctional nursing bed+defecation cleaning machine), defecation nursing robot, Smart nurse cleaning robot, defecation nursing machine for bedridden disabled elderly and disabled people, stroke, cerebral palsy, Alzheimer's disease and senile dementia.
Products Description
System setting
| Defecate time | 180-1800s |
| Defecate flushing&cleaning | 4-20s |
| Defecate dyring | 120-300s |
| Defecate temperature | 30-55 ℃ |
| Urinate time | 30-180s |
| Urinate flushing | 3-10s |
| Urinate drying | 1-1200s |
| Urinate temperature | 30-43 ℃ |
| Flushing temperature | 34-39℃ |
| Urinate negative pressure | 3-5grad |
| Defecate negative pressure | 3-5grad |
| oice volume | 1-5grade |
| Time display | on/off |

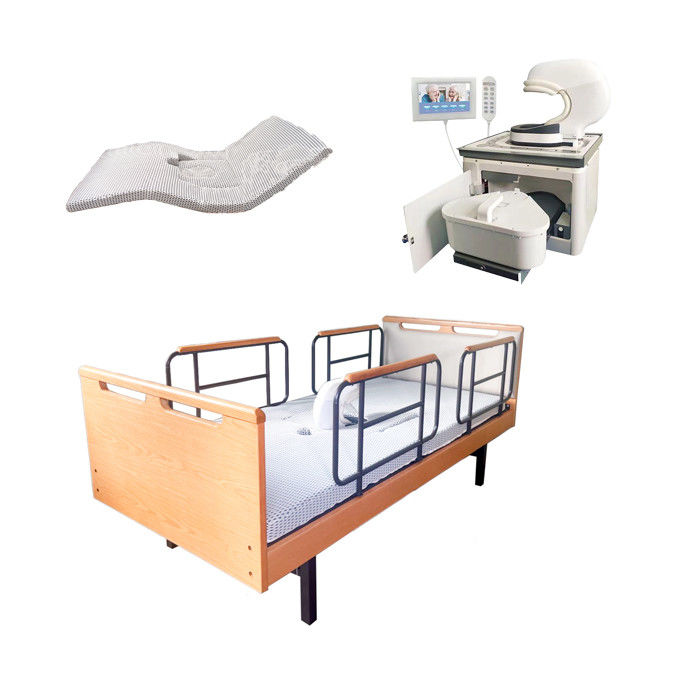

Main configuration:
Multifunctional electric bed, toilet collection host (toilet bucket, clean water tank, sewage tank. The main machine is installed under the bed), mattress. Remote control, operation panel.
The bed and machine are integrated, and there are no redundant pipes, so the operation is simpler and cleaner.
Main components of electric nursing bed
1. Carbon steel bed surface and bedstead (1 set)
2. PE headboard and headboard (2 pieces)
3. Five-gear aluminum alloy guardrail (1 pair)
4. Luxury silent brake wheels (4)
5. High-quality original motor set (1 set)
6. Imported original battery pack (1 set)
7. Mobile dining table (optional) (1 piece)
8. Infusion poles (optional) (1)
Electric bed can be customized.
Electric bed can be customized.Defecation nursing machine, intelligent defecation and urine cleaning machine, newly designed ABS+ steel integrated bed.
Specification and dimensions of nursing beds/mattresses/sheets
1. The bed surface specification is 1925mm*830mm.
2. The whole bed size is 2070mm*925mm*530mm.
3. Mattress size is 1925mm*830mm*50mm.
4. Sheet size 2220mm*980mm
Host setting parameters:
Urine collection time,
Flushing water pressure,
Please wash the time when you are ready.
Drying time of toilet bucket,
Cleaning water temperature,
Drying temperature.
Working mode selection
1. Fully automatic: the whole process is automatic and unmanned.
2. Semi-automatic: automatic after manual start.
3. Full manual operation: the whole process is operated by manual operation.
Features of automatic washing and cleaning function
1. adjustable water temperature: the washing water temperature can be adjusted according to the user's own temperature sense and season.
2. Adjustable water pressure: the flushing water pressure can be adjusted according to the different flushing requirements of the urinal.
3. adjustable time: the flushing time can be adjusted according to the nature of excreta and its own requirements.
4. Water flow cleaning: cleaning excreta by flushing water flow to avoid negative pressure noise interference.
Defecation collection host:
When defecating, when the toilet door senses foreign objects,
The toilet door will automatically open,
And that flush water lubricate the inner wall of the toilet bucket for better collection and cleaning.
Rinse and clean the user, then disinfect with ozone and dry.
Flushing process
Take-out mode of waste water tank:
Turn on the switch and pull out the waste water tank.
